380 V 3 Phases Paper Cup Making Machine XL - S12 With Ultrasonic Sealing

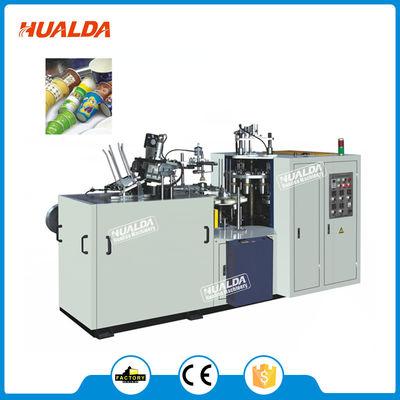

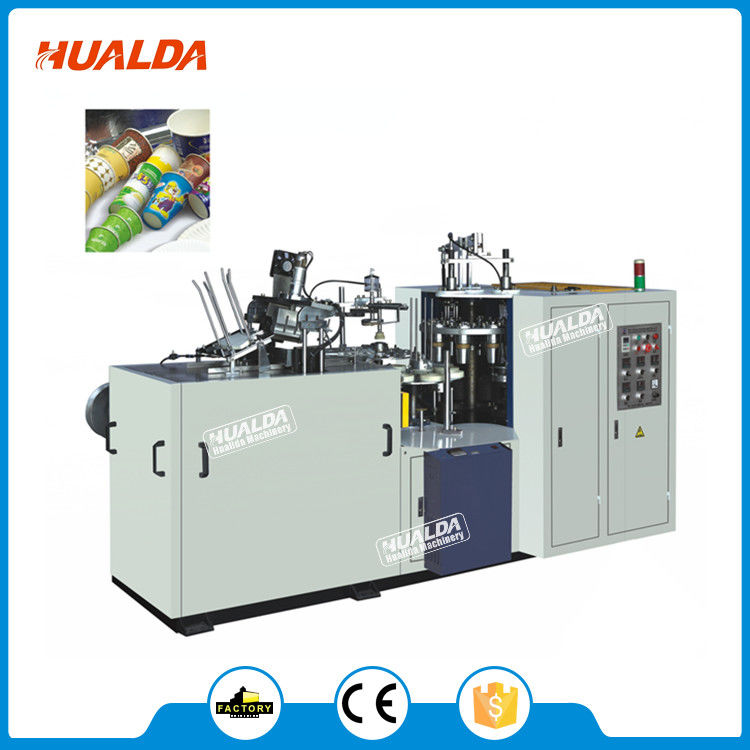

HLD-S12 Paper Cup Machine with Ultrasonic Sealing

Technical data:

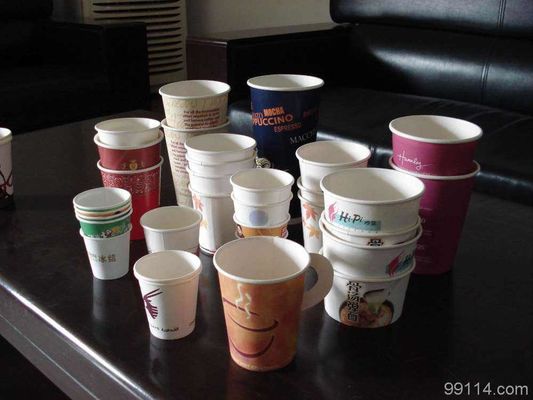

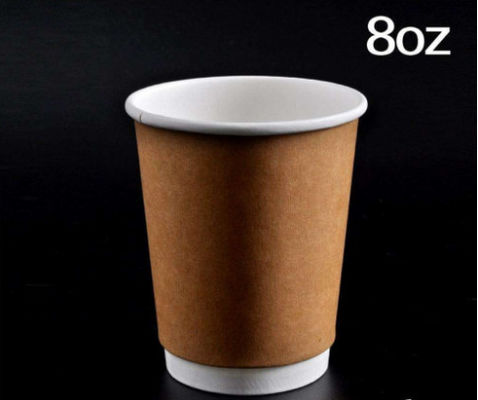

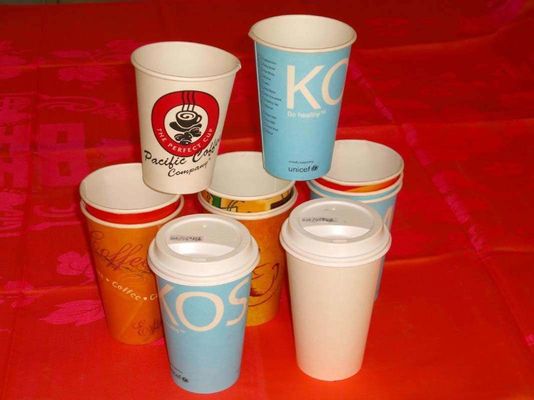

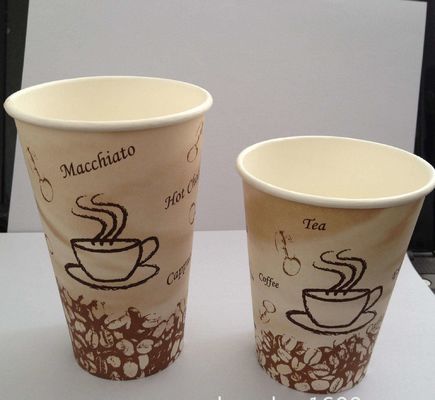

Paper Cup Size RANGE: 2.5 ~~12OZ

Speed: 50~~60pc/min

Paper cup top diameter: Min 45mm ~~Max 104mm

Paper cup bottom diameter: Min 35mm~~Max 75mm

Paper cup height: Min 35mm~~Max 115mm

Raw material: 180~~350gsm, single or double PE coating paper

General power: 5.8 Kw

Electricity: 380V 3 phases

Weight: 1500kg

Measurement: 2.6m×1.22m×1.7m

Working procedure explanation:

To produce the cups, a special cardboard paper with one-side or double side PE lamination is used.

Pre-cut paper is feeding automatically to a cone mould, and then the two edges are welded by

ultrasonic without any glue. And at the same time, the bottom paper roll is die cut and fed to the cup,

then, the cup bottom is preheated and folded with the bottom paper, and goes to the next station,

heating and then knurling, then next station is cup top curling and at last the paper cup is finished

and delivered.

Specification:

1. Paper cup bottom sealing by hot air station.

2. It is easy to make cups of different size by changing moulds.

3. Cup side sealing by ultrasonic system.

4. Double PE coating paper cups for cold drink as well as hot drink.

5. Equiped with robotic arm and 3 pillar shafts each side, which let the machine run more steady.

6. With our unique original designed single shaft bottom knurling system, this ensures the low leaking ratio and high quality of paper cups.

7. Sucker import from Taiwan, which can reach 100 million times’ life span.

8. Design with special cover, our machine is very good for heat dissipation and ensure the longer life span.

9. all the machine covers could be taken down in 2 minutes, very convenient for repair and daily maintenance.

10. We have 8 cams in the paper cup machines, while others maybe only 6 cams.

11. With automatic failure alarm sysem, when no bottom, or finished cup is over running, the machine will stop automatically.

Machine main configurations:

Parts	BRAND NAME
Main motor 1.5kw	FUJIAN ANYANG BRAND
Knurling motor small motor 0.55kw	DASU MOTOR
inverter	SCHNEIDER
switch	ONPOW
Speed reducer	SHENFEI BRAND1:20 WORM
index	SHANGDONG 125:8 TYPE
Other contactor and relay	CHINA CHNT, JAPAN IDEC



Packaging&Shipping of carton box making machine prices

Standard export wooden box, within 45 days after the receipt of advanced payment



Q: Why choose us?

1. More than ten years of production experience, let us pay more attention to product detail.

2. Materia selectionl, we insist on using domestic and international famous brands of accessories,

to ensure the stability of the equipment.

3. About after sale service, customer problems in using the machine, our staff will be in the first time

to solve the program are given.



Q:I have never use this kind of packaging machie,how to control?

1.Each machine we are accompanied by the relevant operating instructions.

2.Our engineers can operate through a video demonstration.

3.We can send engineers to the scene teaching.



Q:How to choose a best fit packaging machine?

1. Give us the product size, weight, size of the packaging bag, packaging style, we will make a

detailed plan for your reference.

2. Provide us the packaging products,they will be packed in our machines and mailed to you for

your reference.



Q:What makes us outstanding from peers?

1. A most strict QC standard in the industry is applied.

2. CE and IOS certificate.

3. High productivity with advanced machines.

4. A wide selection of styles, and product types.
